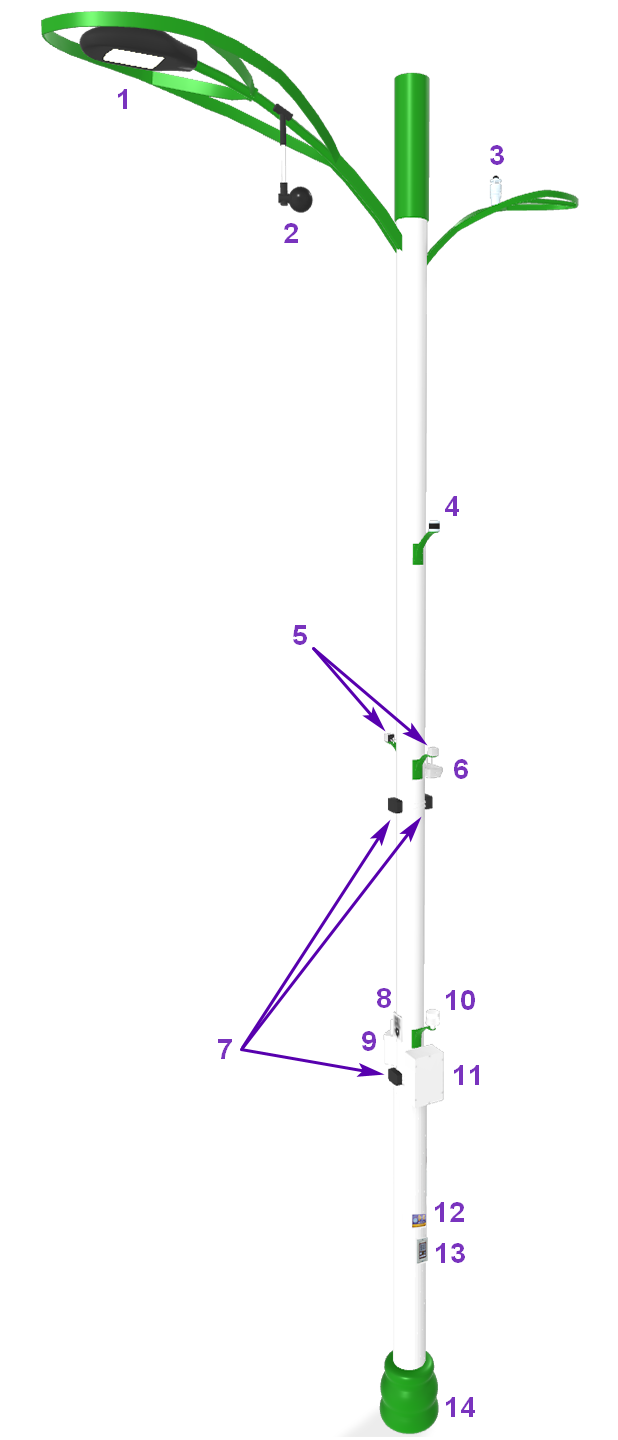

Smart Devices on Smart Lamppost

1. LED Lighting and Smart Lighting Management System
• To provide lighting to the roads and real-time management and control of road lights
2. Thermal Detector
• To collect real-time traffic data, including vehicle count, average spot speed and road occupancy, for enhancing the efficiency of traffic management
3. Meteorological Sensor (Upper Part of Lamppost)
• To collect meteorological data at district level, including temperature, relative humidity, wind speed and direction
4. Light Detection and Ranging (LiDAR)
• To collect vehicle speed and identify some types of vehicles in the traffic
5. BATS Code Antenna
• To transmit wireless signal for BATS (BATched Sparse) Code Processors for internal data of smart lampposts
6. Wi-Fi Antenna
• To transmit Wi-Fi signals for providing free public Wi-Fi services
7. Bluetooth Beacon
• To transmit 2.4 GHz Bluetooth signals for providing accurate position information to users for real-time location-based applications
8. Geo-marker
• To provide an effective way for devices installed on vehicles to get accurate position information for location-based applications
9. Antenna
• To provide wireless network connection for smart devices on the lampposts
10. Meteorological Sensor (Middle Part of Lamppost)
• To collect meteorological data at district level including temperature and relative humidity
11. Air Quality Sensor
• To collect air quality data including concentration of nitrogen monoxide, nitrogen dioxide and PM 2.5 at district level
12. Wi-Fi Label
• To indicate availability of free public Wi-Fi services
13. Geo-QR Code Tag
• To provide pedestrians with accurate position information for location-based applications
14. RFID Tag
• To provide positioning information via RFID tag that stores corresponding lamppost number and location information
